E40N - Nozzle Check Valve, Axial Type
This type of Check Valve can operate without an impact by absorbing shock and vibrations.
The flow is provided in laminar state.
It is possible to have the required flow rate by adjusting the flow orifice.
Pigging is not applicable.
E40N Features
Available size 50mm(2") to 1200mm(48")
Available rating Class 150 - 2500LB
Minimize Slamming
Long Pattern
Spring Loaded
Flanged End / Butt Weld End
Low Pressure Drop
Standards
Design API 6D, ASME B16.34
NACE MR0175, MR0103
F to F and E to E dimensions ASME B16.10, API 6D
Welding end dimensions ASME B16.25
Flange end dimensions ASME B16.5, B16.47 Series A, Optional Series B
Test Standard API 598
Operators
Self Acting
Application
E40N Check valves can be suitable for Water, Renewable and Marine Offshore applications.

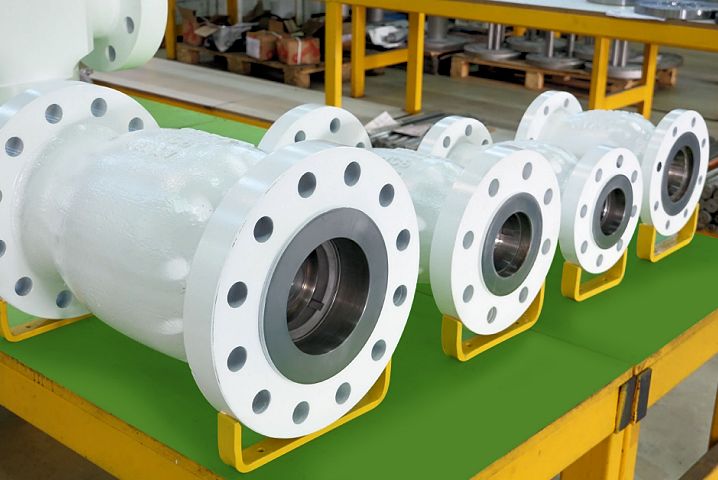

E40N - Nozzle Check Valve, Axial Type
After-sales, Service and Spares
Working with our European partners, Advastas are able to supply all client requirements for after-sales service and spares.
For further information contact us by email  , or by using the Contact Form
|
