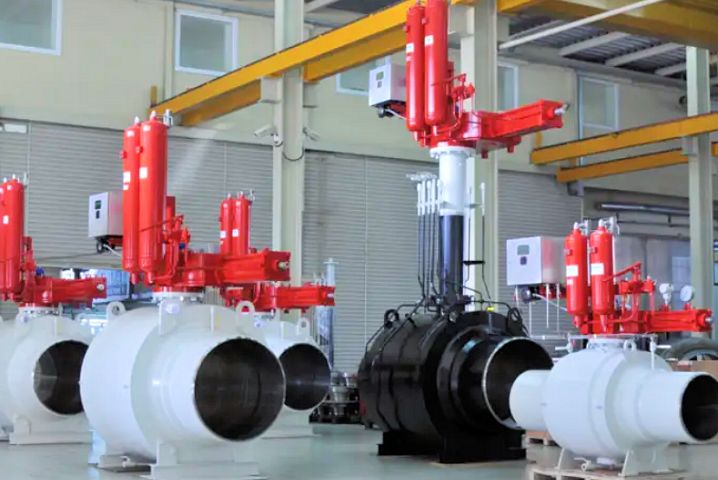

E60L - Full Welded Ball Valve with Triple Seat.

This valve type is Fully Welded, exactly as E60M but houses a triple seat making this valve ideal for underground applications. All features of the E60M Fully Welded Ball Valve are supported.

E60L seat design is patterned and manufactured as triple seat and it's features are as follows:-
PSSM type double piston effect ring.
Supported with PSSM type self relief ring.
Sealant between both seat rings, a fully leak-proof ring assembly is provided

This triple seat feature prevents damage from sharp or abrasive contaminants within the pipeline.

E60L Features
Available size 50mm(2") to 1500mm(60")
Available rating ASME Class 150# - 1500#
Two or Three piece forged Body
Double Block & Bleed
Trunnion Mounted Ball
Anti Static Device
Full / Reduce Bore
Fire Safe Design
Body Drain & Vent
Anti blow-out stem
Emergency Sealant Injection (Stem & Seat)

Standards
Design API 6D, ISO 14313, ASME B16.34
Face to Face size ASME B16.10, API 6D
Fire safe valve design, according to API 607,
API 6FA and ISO 10497 standards.
End Type, Butt weld, ASME B16.25

Operators
Lever Operated (NPS 4" and under)
Gearbox
Electric Actuators
Spring Return Pneumatic Actuator
Gas Over Oil Actuators

For further information contact us by email  , or by using the Contact Form

E60L - Full Welded Ball Valve.
